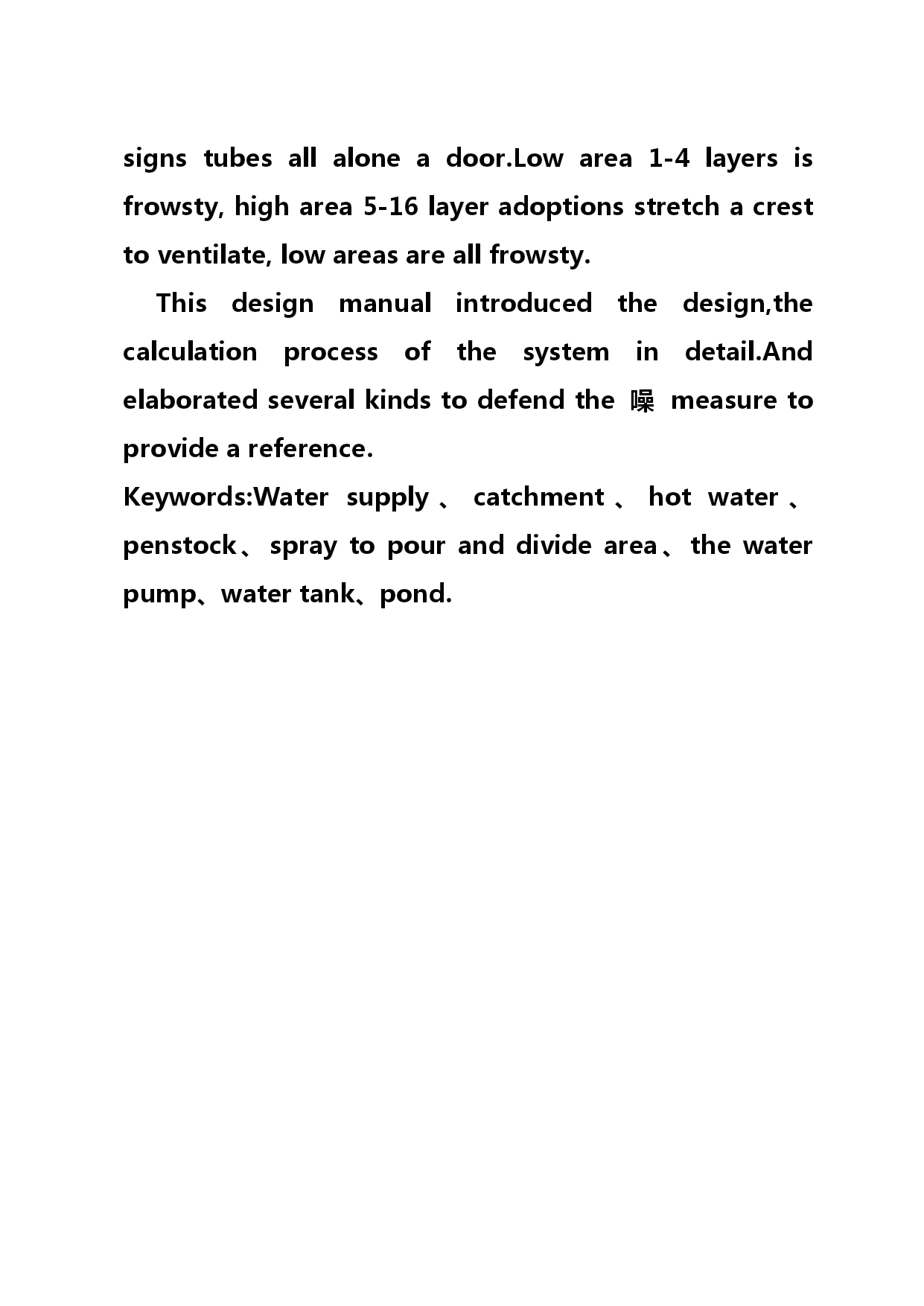

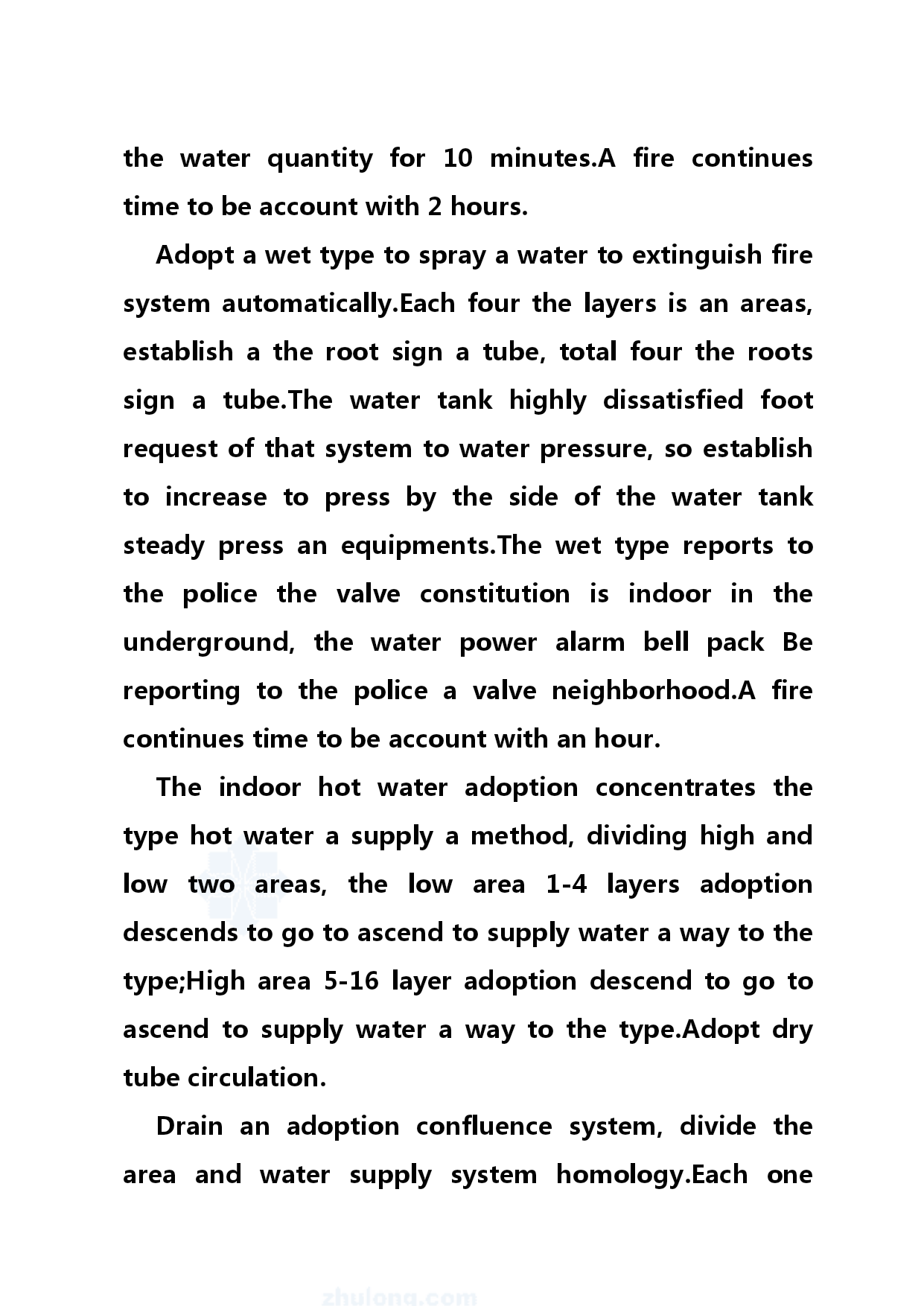

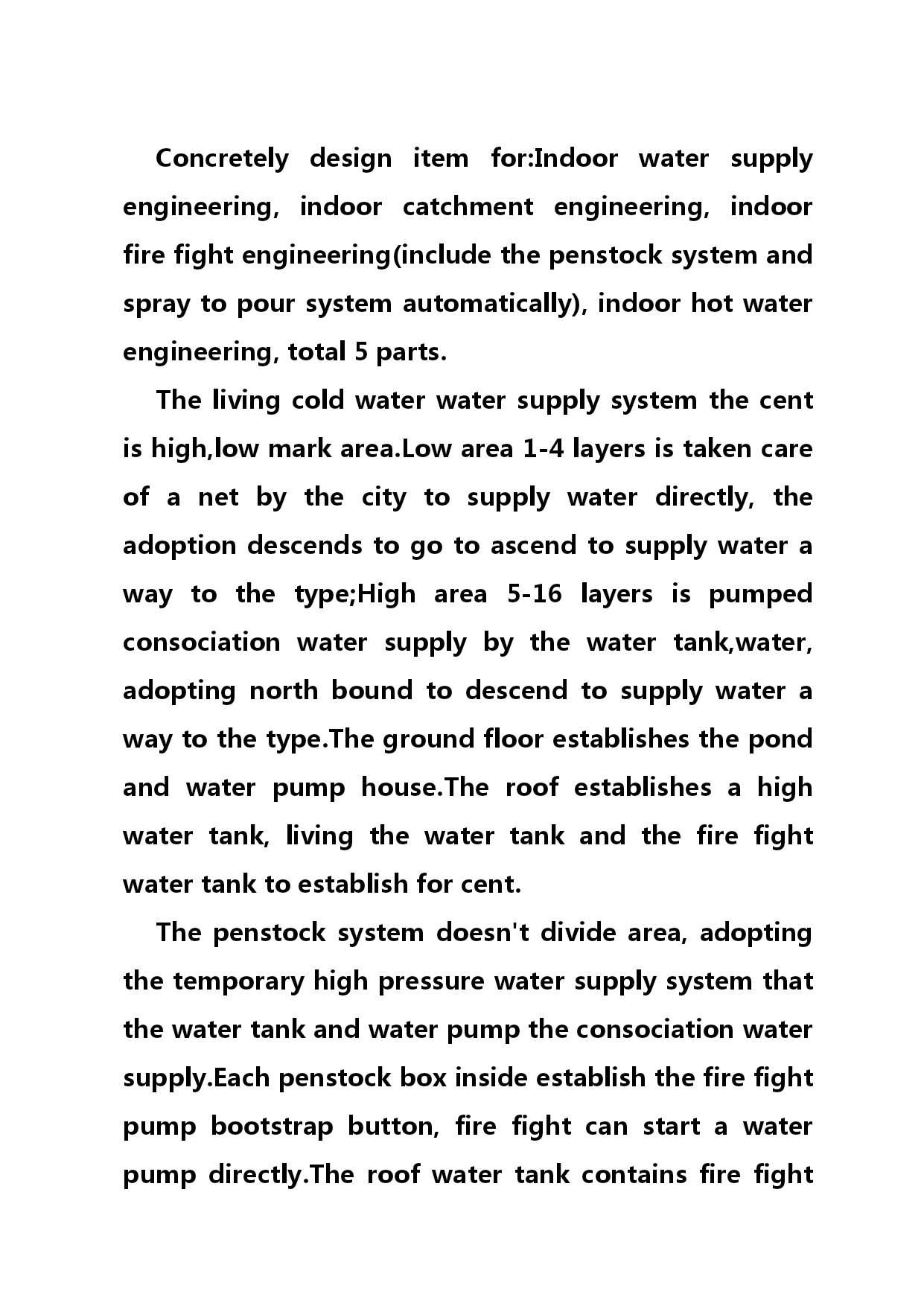

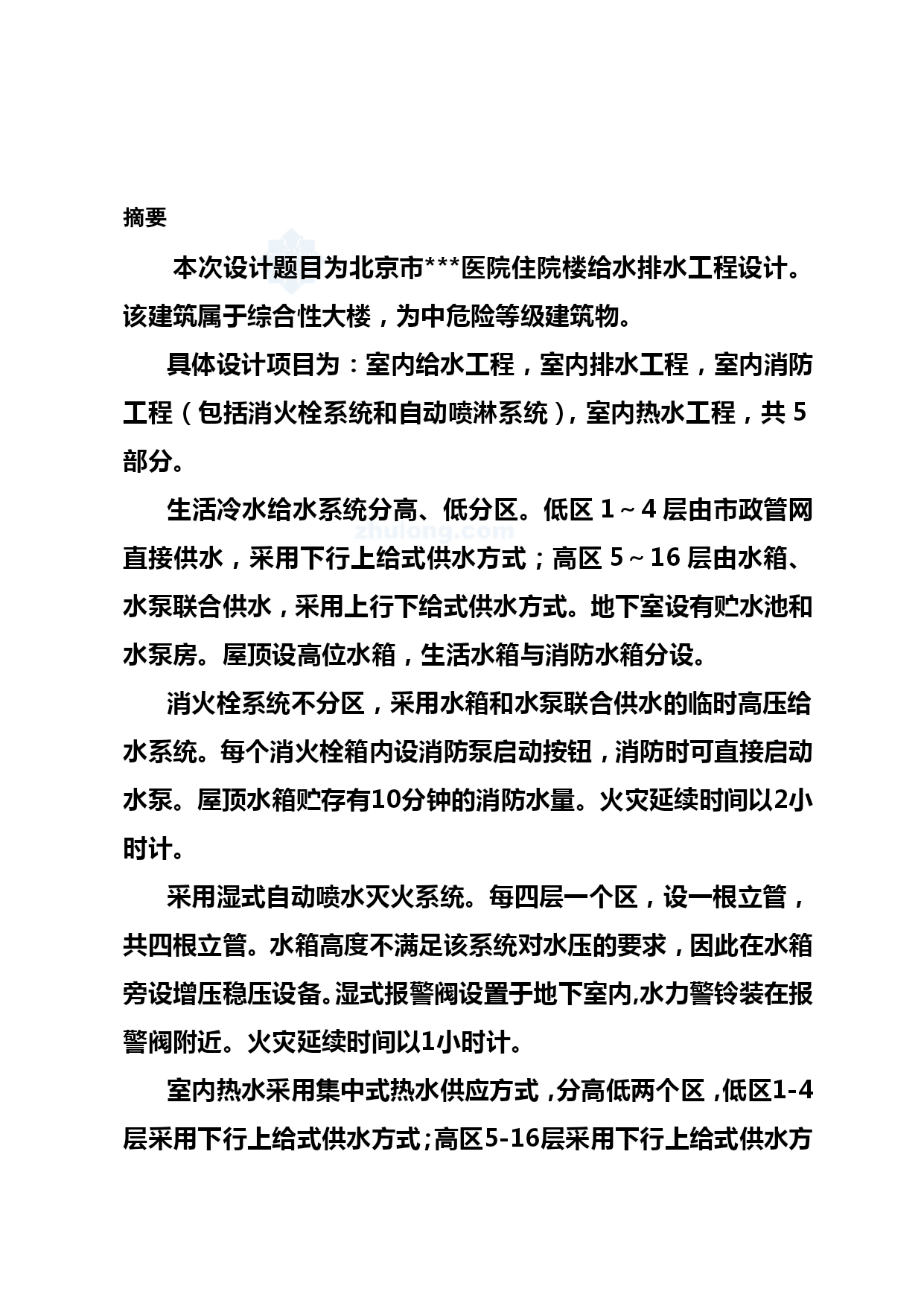

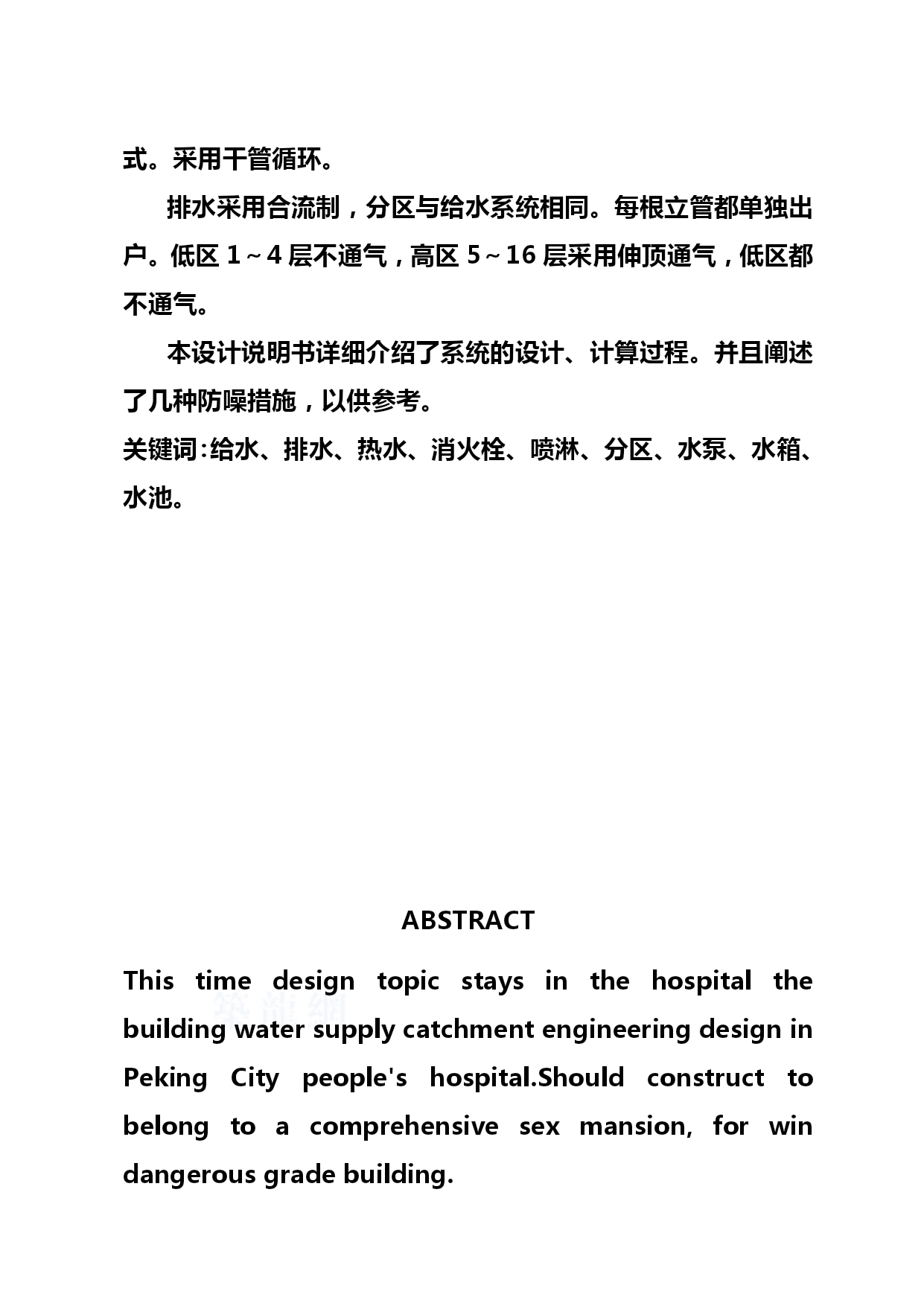

北京市某医院住院楼给水排水工程设计(毕业设计汇编（完整版）资料(可以直接使用，可编辑优秀版资料，欢迎下载）摘要本次设计题目为北京市***医院住院楼给水排水工程设计。该建筑属于综合性大楼，为中危险等级建筑物。具体设计项目为：室内给水工程，室内排水工程，室内消防工程（包括消火栓系统和自动喷淋系统），室内热水工程，共5部分。生活冷水给水系统分高、低分区。低区1～4层由市政管网直接供水，采用下行上给式供水方式；高区5～16层由水箱、水泵联合供水，采用上行下给式供水方式。地下室设有贮水池和水泵房。屋顶设高位水箱，生活水箱与消防水箱分设。消火栓系统不分区，采用水箱和水泵联合供水的临时高压给水系统。每个消火栓箱内设消防泵启动按钮，消防时可直接启动水泵。屋顶水箱贮存有10分钟的消防水量。火灾延续时间以2小时计。采用湿式自动喷水灭火系统。每四层一个区，设一根立管，共四根立管。水箱高度不满足该系统对水压的要求，因此在水箱旁设增压稳压设备。湿式报警阀设置于地下室内,水力警铃装在报警阀附近。火灾延续时间以1小时计。室内热水采用集中式热水供应方式，分高低两个区，低区1-4层采用下行上给式供水方式；高区5-16层采用下行上给式供水方式。采用干管循环。排水采用合流制，分区与给水系统相同。每根立管都单独出户。低区1～4层不通气，高区5～16层采用伸顶通气，低区都不通气。本设计说明书详细介绍了系统的设计、计算过程。并且阐述了几种防噪措施，以供参考。关键词：给水、排水、热水、消火栓、喷淋、分区、水泵、水箱、水池。ABSTRACTThistimedesigntopicstaysinthehospitalthebuildingwatersupplycatchmentengineeringdesigninPekingCitypeople'shospital.Shouldconstructtobelongtoacomprehensivesexmansion,forwindangerousgradebuilding.Concretelydesignitemfor:Indoorwatersupplyengineering,indoorcatchmentengineering,indoorfirefightengineering(includethepenstocksystemandspraytopoursystemautomatically),indoorhotwaterengineering,total5parts.Thelivingcoldwaterwatersupplysystemthecentishigh,lowmarkarea.Lowarea1-4layersistakencareofanetbythecitytosupplywaterdirectly,theadoptiondescendstogotoascendtosupplywaterawaytothetype;Higharea5-16layersispumpedconsociationwatersupplybythewatertank,water,adoptingnorthboundtodescendtosupplywaterawaytothetype.Thegroundfloorestablishesthepondandwaterpumphouse.Theroofestablishesahighwatertank,livingthewatertankandthefirefightwatertanktoestablishforcent.Thepenstocksystemdoesn'tdividearea,adoptingthetemporaryhighpressurewatersupplysystemthatthewatertankandwaterpumptheconsociationwatersupply.Eachpenstockboxinsideestablishthefirefightpumpbootstrapbutton,firefightcanstartawaterpumpdirectly.Theroofwatertankcontainsfirefightthewaterquantityfor10minutes.Afirecontinuestimetobeaccountwith2hours.Adoptawettypetosprayawatertoextinguishfiresystemautomatically.Eachfourthelayersisanareas,establishatherootsignatube,totalfourthe
